HIGH PERFORMANCE



20Ah

Battery

100 - 150km

Range

750w

Motor

Innovative 48v 750watt Motor

TRAIL SPORT Z750

Specifications

Seat Max Height

A

42"

Seat Min Height

33"

Seat to Post

Total Length

Handlebar Height

Handlebar Width

23" - 29"

70"

38" - 43"

27"

B

C

D

E

F

Total weight : 66lbs          Capacity: 300lbs

Rear Hub Motor

48 Volt, 500 Watts, 80Nm Torque

48 Volt. 750 Watt Unlocked Mode

Braking System

ZOOM Hydraulic Brakes

Vented 180mm Rotors

Handlebar Stem

Promax Adjustable Neck

Throttle Type

Right Side Twist Throttle

Seat

Promax Suspension Seat Post

Heavy Duty Cushion Seat

Battery

Samsung 48 Volt, 20Ah Li-Ion

Suspension System

MOZO Adj. Hydraulic Fork

Compression Dampening w/Lock-Out

LCD Display

Color LCD Oversized Display

Tires

Kenda 27.5" x 2.2" Tires

Reflective Strip and Puncture Res.

Gears & Shifters

Acera Rapid Fire Shifters

8-Speed Shimano Gears

Crankset

Alloy Double Guard ProWheel

Shimano 11-32T, 52T

Mudguards & Rack

Rear Rack and Front/Back Mudguards

Lights

Front & Rear LCD Lights, Turn Signals

Electric Horn

Charger

3A Charger

Pedal Assist System

Custom 12 Magnet Cadence

Smooth Quick Response 5 Levels

SPECIFICATIONS

DETAILED SIZING

REAR

motor

Samsung 20Ah Battery

48v 750watt, 80Nm torque

Amazingly fine tuned motors with our responsive pedal assist achieves incredible smooth acceleration, you wont believe its accuracy. With the Trail Sport Samsung 20Ah battery you will obtain range well over industry standards.

Shimano ACERA

8-Speed Cassette

MOZO Suspension

Hydraulic Brakes

180mm Rotor



High Performance

Quality Parts

Every component specifically chosen to provide incredible comfort and performance. Trail Sport Z750 is a rugged e-bike with high quality components, built to be ridden hard.

Extra Padded Seat

Promax Suspension

 Components

"The difference between something good and

something great is attention to detail."

Try our Leisure Version

TRAIL STEP-ELITE

Fabulous TRAIL STEP ELITE is part of the outdoor series ebikes with easy access frame design. A great companion to the Trail Sport Z750 with extra components like front and rear mudguards and a sturdy rear rack to bring all your gear.  All other parts are identical with the same quality and performance in mind.

Free Shipping

Wholesale Prices

Top Rated Items

Local Pickup

  • 48v 500w / 48v 750watt Off-Road

  • 20Ah, 960Wh Samsung Batteries

  • Front & Seat Suspension

  • Zoom Hydraulic Disc Brakes

  • Shimano ACERA Derailleur

  • Half-Twist Right Throttle

  • Kenda 27.5' x 2.2' KS Tires

  • Shimano 8-Speed 11-32T Freewheel

  • 52T Pedal Crank

  • Rear Rack & Mud Guards

  • New Color LCD, Electric Horn

  • Screwless Adjustable Neck

  • Front/Back Lights with Turn Signals

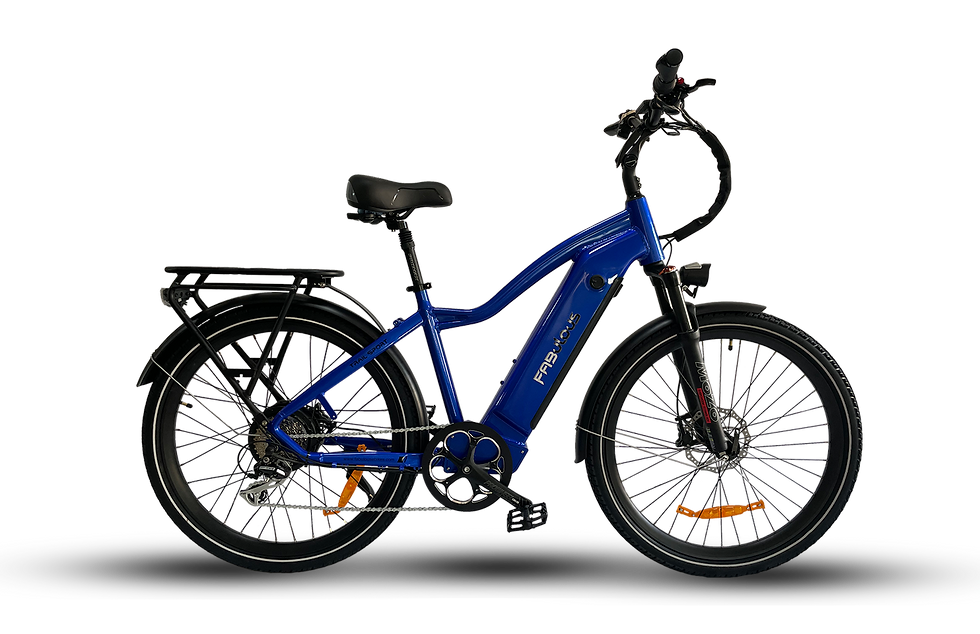

Trail Sport Z750

"Innovative, Rugged & Powerful!"

   "Redesigning all the time, upgrading where we see room to improve and bringing new colors to the lineup is what we do at Fabulous!  The Trail Sport Z750 is unmatched in power and massive 20Ah Samsung battery will deliver incredible range. A list of high quality premium parts fully disclosed are not found on any other bikes. Built to be fun, fast and exciting we feel the Trail Sport will exceed all your expectations.

"

48v 750watt

Trail Sport Z750

Rugged & Powerful

Silver Bullet

Noir / Black

Deep Blue

Colors

Deep Blue, Noir / Black, Silver Bullet

New Safety Controls

On/Off Light Switch, Turn Signals, Electric Horn

ZOOM Hydraulic  Brakes

LCD Control

Pedal Assist Control

Level 0=Off   (1-5) = Speed Control

Hydraulic Brake Levers

With Motor Cut Off for Safety

Custom Curved Handlebars

Adjustable Promax Neck

 with Padded Grips

 Rapid Fire Trigger Shifter

 Right Side Twist Throttle

 Re-Designed Color LCD

  • Speedometer & Odometer

Current, Average & Max Speed

Current & Total Distance Travelled

  • Motor Watt Meter

  • Battery Stats

  • Temperature

  • Cruise Control On/Off

  • Fully Programmable

  • Walk Assist toggle

It Must Feel Right

Safe, Comfortable, Stylish & Efficient
